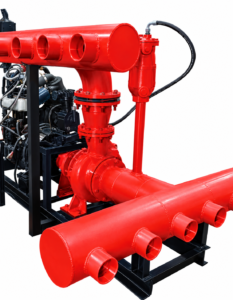

Vacuum Assisted Self Priming Pump
We offer Vacuum Assisted Self Priming Pump units built with an advanced auto prime system where there is no need for a foot valve. These pumps can easily draw water up to 8–9 meters using a high-powered vacuum mechanism with a specially designed vacuum part. You can use different types of pumps like back pull-out, end suction, and HSC pumps - making them ideal as a Self Priming Pump for clear water, dirty water, or even water with solid content.
Our Vacuum Assisted Self Priming Pump units are high-performance engine or motor-driven systems specially designed to handle liquids containing mud, sewage, and semi-solids. Widely used as a Non Clog Pump in drainage, construction, and dewatering applications, these units deliver consistent output even in the toughest site conditions.
As one of the trusted manufacturers, we supply vacuum-assisted Contractors Pump units that are mounted on site wheels, high-speed road trailers, or skids - making them the first choice for contractors across Ahmedabad and throughout Gujarat. Depending on your requirement, the pumpset can be supplied in an open design or enclosed in an acoustic canopy.
Applications of Auto Prime Pumps:
- Ground water control
- Wellpoint dewatering
- Sewage over-pumping
- Flood relief
- Pipe relining
- Mine dewatering
- Industrial sludge pumping
- Tank sediment cleaning
- Emergency service pumping
- Marine ballasting
Range
| Parameter | Specification |
|---|---|
| Flow Rate | 200 to 6000 m3 /hr |
| Discharge Head | 4 to 28 m |
| Pump Speed Range | 750 to 1500 rpm |
| Max Solids Size | Up to 100 mm |
| Pump Casing | Cast Iron / Stainless Steel |
| Impeller | Stainless Steel |
| Pump Shaft | ST ST ASTMA-276 TYPE 410 ,Carbon Steel |
| Different Sizes | APM250/34 , APM300/34 , APM350/47, APM400/47, APM450/54 |
VACUUM ASSISTED SELF PRIMING PUMP SYSTEM – Reliable Pumping Solutions for Tough Jobs
Tired of dealing with priming issues on-site? Our Vacuum Assisted Self Priming Pump takes that headache away completely. You get solid, dependable performance day after day - fast priming, low maintenance, and no manual intervention, even when suction lines are full of air, debris, or semi-solid waste. Contractors and project teams across Ahmedabad and Gujarat have been relying on these pumps for years, and for good reason.
Why Choose Our Vacuum Assisted Self Priming Pump?
These are not your average pumps. Built on a rugged end-suction, mixed-flow design, they handle solids without breaking a sweat and perform consistently at both low and medium heads. As a true heavy-duty Self Priming Pump, you also get full flexibility on mounting - vertical, horizontal, or oblique - so installation works around your site layout, not the other way round.
Key components
- Prime Mover (Engine / Motor): Engines are air/radiator or heat-exchanger cooled, running at 1000 rpm and above. You get robust inline engines with direct injection for fuel efficiency under load. Motors come in TEFC or drip-proof configurations depending on your site environment.
- Priming Tank Assembly: This sits directly on the suction branch. Its job is straightforward – pull air out of the suction line before the pump starts working and keep the vacuum pump protected from water ingress at all times.
- Vacuum Pump & Coalescer: Once air is drawn from the priming tank, the vacuum pump pushes it into the coalescer. Here, oil is stripped out of the air cleanly – the oil gets recycled back for lubrication while clean air exits to the atmosphere. This closed-loop design is what keeps every Vacuum Assisted Self Priming Pump running efficiently with almost zero operator involvement.
Design highlights
- Pumps continue operating even when liquid runs dry and automatically re-prime the moment liquid returns – no manual restart needed.
- Fully mechanical priming system with no electronics involved, which means fewer failure points on-site.
- Heavy-duty build quality with low day-to-day maintenance demands, making it an excellent choice as a Non Clog Pump for drainage, sewage, and dewatering work.
- 60 cfm vacuum pump complete with coalescer and atmospheric air exhaust.
- Rotary-vane, oil-lubricated vacuum pump rated at 60 cfm / approximately 100 m³/hr.
- Zero manual priming required – a feature that makes all the difference when you are running a busy Contractors Pump operation with limited site staff.
Pump specifications (at a glance)
- Flow rate: 200 to 6000 m³/hr
- Discharge head: 4 to 28 m
- Speed range: 750–1500 rpm
- Maximum solids size: Up to 100 mm
- Casing material: Cast iron or Stainless steel
- Impeller: Stainless steel
- Shaft: ASTM A-276 Type 410 or Carbon steel
Available models: APM250/34, APM300/34, APM350/47, APM400/47, and APM450/54.
Need help selecting?
Not sure which pump suits your job? Our Vacuum Assisted Self Priming Pump specialists will sort it out with you. We regularly work with contractors, civil engineers, and project managers across Ahmedabad and Gujarat to match the right pump size, motor type, and mounting orientation to each specific application. No guesswork – just the right fit from the start.
Frequently Asked Questions
Q1. Do I have to manually prime this pump every time?
No, not at all. It primes itself automatically – just start it, and it does the rest on its own.
Q2. Can it handle mud, sludge, or solid waste on site?
Yes, easily. It was built for messy jobs – mud, sewage, chunky solids- it pushes through all of it without getting blocked.
Q3. Do you supply these pumps in Ahmedabad or Gujarat?
Yes, we do. We work with teams across Ahmedabad and Gujarat, and our team is always a call away if you need help choosing or setting up.
