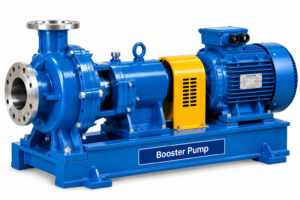

Booster Pump

Booster Pump – Steady Pressure Support Wherever The Line Needs It by Malhar Pump

Not every system loses its strength right at the source. Sometimes the pressure is fine at the start of a line, but by the time it reaches the far end of a building, an elevated tank, or a long pipeline run, it has simply run out of push. If that sounds familiar, you already understand why a Booster Pump exists. At Malhar Pump, every Booster Pump is built to pick up exactly where the system starts falling short – restoring pressure mid-line without disrupting what is already working upstream.

Most facilities are not chasing a total system overhaul. What they actually need is something that steps in at the right point, lifts pressure back to where it should be, and keeps doing that reliably shift after shift. That is precisely the role this range is designed to fill.

This same approach carries through our Pressure Pump and Solid Handling Pump lines as well – because a system should never be held back by the one weak link in its pressure chain.

Applications

These pumps are in extensive use in the fields of:

Dairy processing
Food & Beverage processing
Pharmaceutical liquid handling
Chemical transfer and circulation
Hygienic and sanitary process lines
Homogenized and emulsified products
Cosmetic and personal care liquids

Edible oil and fat processing
Water and utility services
CIP (Clean-in-Place) systems
Brewery and distillery processes
Sugar syrup and glucose handling
Paints, inks, and coating liquids
Low to medium viscosity fluids

Range

Parameter	Specification
Flow Rate	200 to 6000 m³/hr
Discharge Head	4 to 50 MWC (Up to 5 Bar)
Pump Speed (RPM)	2800 / 1400 / 750 / 1500 rpm
Operating Temperature	Up to 140°C
Impeller Diameter	80 mm to 185 mm
Max Solids Size	Up to 100 mm
Pump Casing	Single Piece, Uniform Wall Thickness (SS)
Material of Construction (MOC)	SS 304 / SS 316
Impeller	High Precision Stainless Steel (Dynamic Balanced)
Pump Shaft	SS ASTM A276 Type 410 / Carbon Steel
Seal Type	Single Shaft Mechanical Seal
Gasket Material	Nitrile / Silicon / EPDM (Optional)
Motor Type	Foot Cum Flange Mounted Motor
Power Source	Single Phase / Three Phase
Connections	SMS Union / Welded / Expandable Type
Different Sizes / Models	APM250/34, APM300/34, APM350/47, APM400/47, APM450/54

Pump Capacity

HP	Head	Discharge	Amps
0.5	2 MWC	7000 LPH	0.5
0.5	4 MWC	5000 LPH	0.45
0.5	6 MWC	4000 LPH	0.3
1	8 MWC	14000 LPH	1.3
1	10 MWC	10000 LPH	1.2
1	12 MWC	8000 LPH	1.4
1.5	8 MWC	14000 LPH	1.4
1.5	10 MWC	12000 LPH	1.2
1.5	16 MWC	4000 LPH	0.9
2	12 MWC	20000 LPH	2.56
2	16 MWC	15000 LPH	2.6
2	20 MWC	8000 LPH	2.6
3	16 MWC	24000 LPH	3.6
3	20 MWC	16000 LPH	3
3	28 MWC	7500 LPH	2.5
5	20 MWC	30000 LPH	6.4
5	28 MWC	25000 LPH	5.8
5	30 MWC	10500 LPH	4.6
7.5	25 MWC	38000 LPH	9.6
7.5	30 MWC	32000 LPH	8.7
7.5	40 MWC	16000 LPH	7

Why Facilities Keep Choosing This Technology

Reliability, not flashy features, is what earns a pump a permanent spot on the floor. A well-built Booster Pump quietly closes the pressure gap and stays out of the way otherwise – and in industrial settings, that kind of dependability matters more than anything printed on a spec sheet.

Facilities regularly find that our pumps:

Restore consistent pressure at points where the main line falls short
Support elevated tanks, upper floors, and extended pipeline runs
Hold steady output even as demand fluctuates across the system
Run continuously across long shifts with very little supervision needed
Integrate into existing setups without requiring a full system redesign

This is also why our Solid Handling Pump and Ash Handling Pump models see strong repeat demand from the same clients – once a facility trusts the build quality, they come back for the next application too.

Strength That Proves Itself Over Time

A pump earns its reputation after months on the job, not from a product brochure. Every unit from Malhar Pump is engineered to handle continuous duty cycles without a gradual drop in performance. Component selection is focused on long service life, which in practical terms means fewer breakdowns, lower maintenance costs, and far less unplanned downtime for your operation.

Facilities running multi-storey buildings, extended distribution networks, or high-demand irrigation systems rely on this equipment because it does not lose its edge over time. Once it is commissioned properly, it becomes one less variable to worry about.

Works Across Multiple Industries and Applications

Every facility runs into pressure loss differently, but the need to lift it back up shows up across more industries than most people expect. Our units are regularly used in:

Residential and commercial buildings needing consistent pressure on upper floors
Irrigation networks covering large or uneven agricultural land
Water distribution systems with long transmission lines
Fire-fighting systems where pressure cannot be allowed to drop
Industrial process lines requiring a lift at a specific stage

Whether you need a dedicated Booster Pump for a building’s upper floors, a Pressure Pump for a demanding pipeline, or a heavy-duty Solid Handling Pump for abrasive material – there is a configuration from Malhar Pump ready for your application.

Simple Setup, Predictable Long-Term Operation

No facility wants a lengthy installation process or a commissioning headache. Our units are designed to slot into existing pipelines and systems without forcing a redesign of what is already in place. Once running, routine inspection and scheduled maintenance are typically all it takes to keep performance consistent.

Just share your required pressure lift, flow rate, and system layout – and our team will help you find exactly the right configuration from the start.

Get The Right Pump For Your Application

If pressure keeps dropping at the far end of your line, upper floors are underperforming, or your irrigation system cannot cover the full area consistently, it is time for a proper fix. Whether you need a reliable pressure lift mid-line, a Pressure Pump for a demanding line, or a Solid Handling Pump for abrasive material – Malhar Pump has the right unit ready for your setup.

Talk to our team today. Tell us where the pressure is dropping, and we will take it from there.

Frequently Asked Questions

Q1. What does a Booster Pump actually do that a regular pump does not? A regular pump moves fluid at whatever pressure it naturally produces. A Booster Pump is installed mid-system specifically to lift pressure back up at a point where it has already started to fall – something a standard pump at the source cannot fix on its own.

Q2. Do I need a Booster Pump for a residential building or only for large industrial systems? Both, depending on the layout. Upper floors in multi-storey buildings often lose pressure the same way a long industrial pipeline does. Our team looks at your building height, distance, and demand pattern to recommend the right size.

Q3. Can a Booster Pump be added to an existing system without major changes? In most cases, yes. These units are built to integrate into an existing line at the point where pressure needs a lift, without requiring a redesign of the rest of the system. Share your layout and our team will confirm the right fit.
